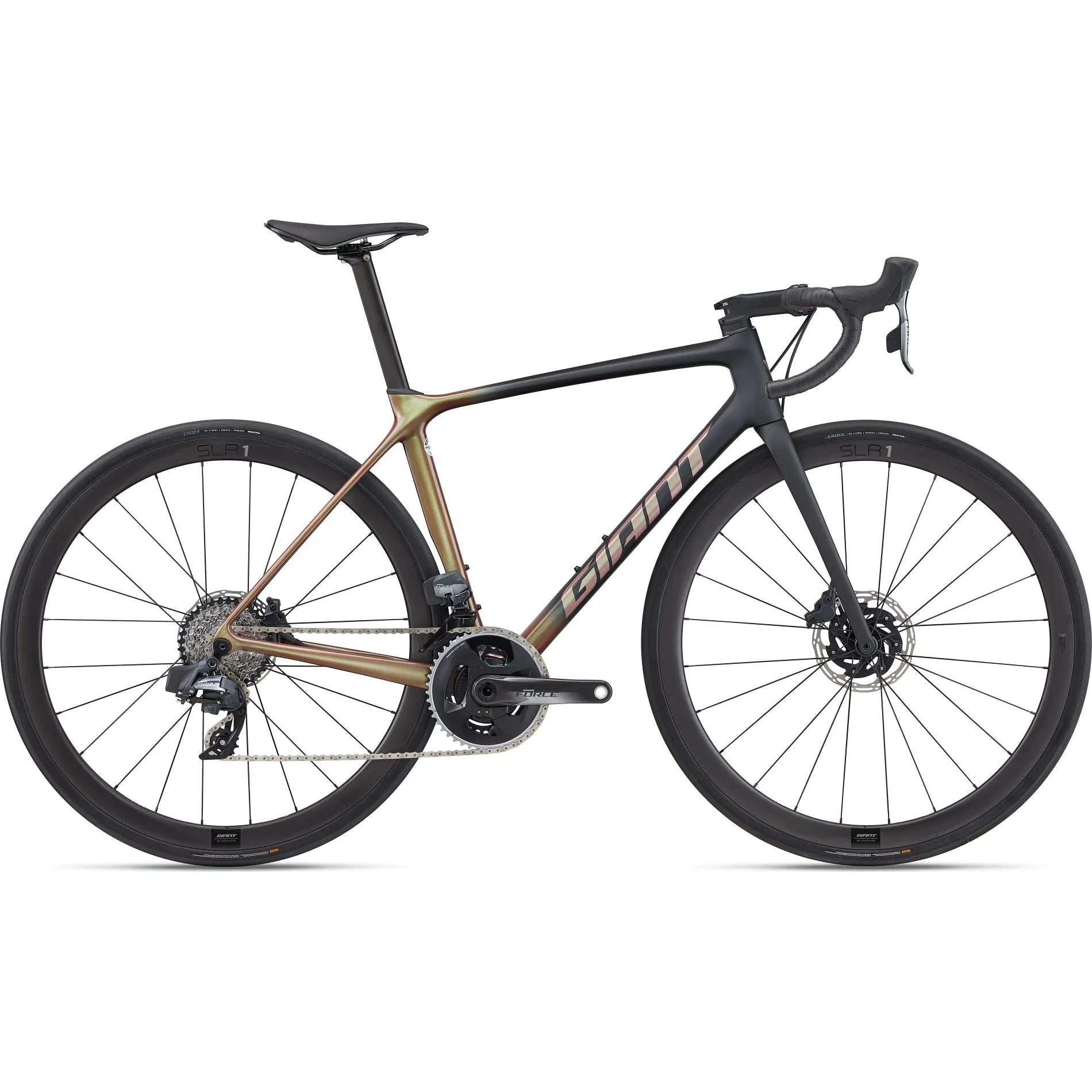

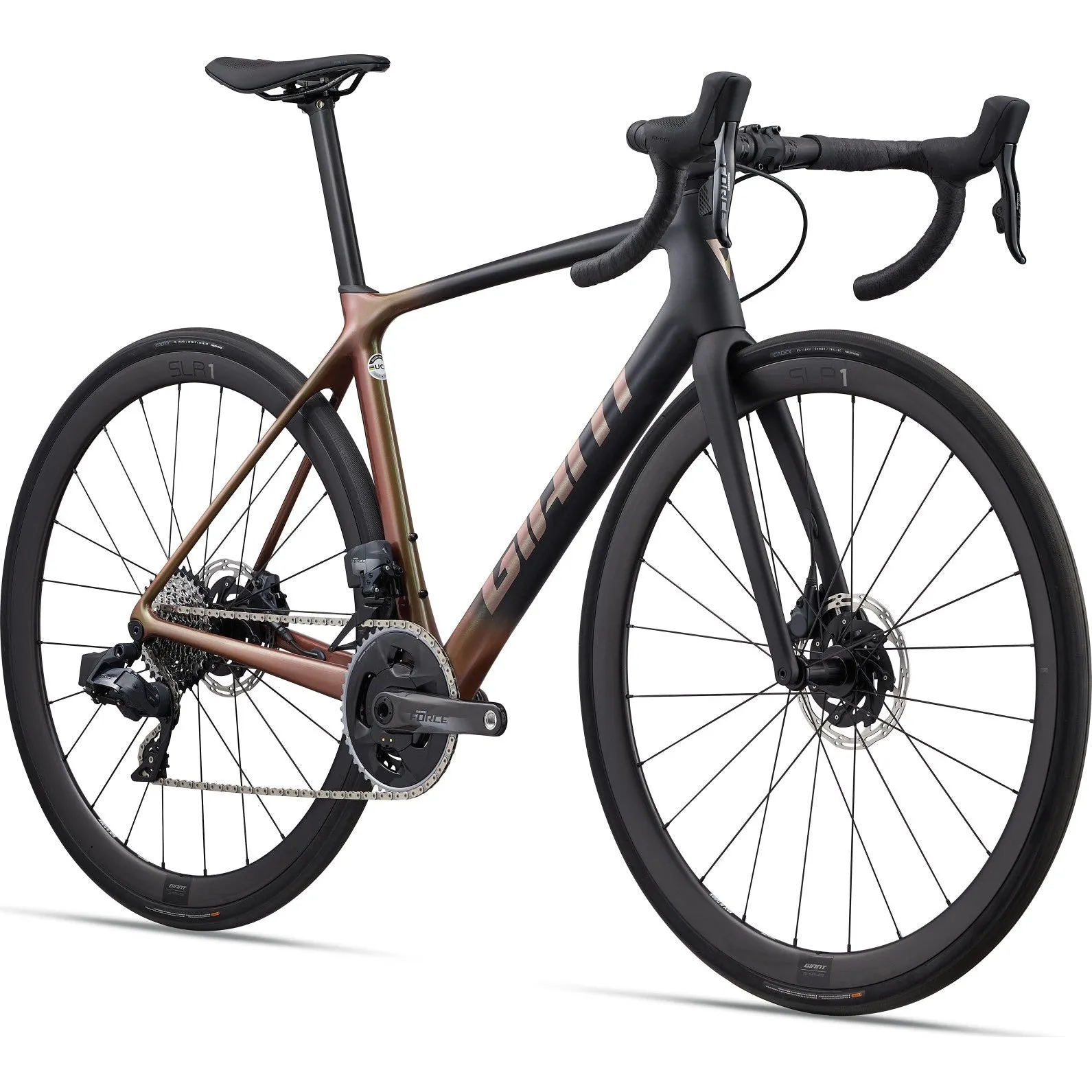

CLIMB, CORNER AND DESCEND WITH SPEED AND EFFICIENCY. FROM THE MOUNTAINS TO THE FLATS, IN ALL TYPES OF CONDITIONS, THIS LIGHTWEIGHT COMPOSITE ROAD RACER TAKES YOU TO THE NEXT LEVEL.
KEY PERFORMANCE FACTORS
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
| Sizes | XS, S, M, M/L, L, XL |
| Colors | Matte Carbon/Gloss Messier |
| Frame | Advanced-Grade Composite, disc |

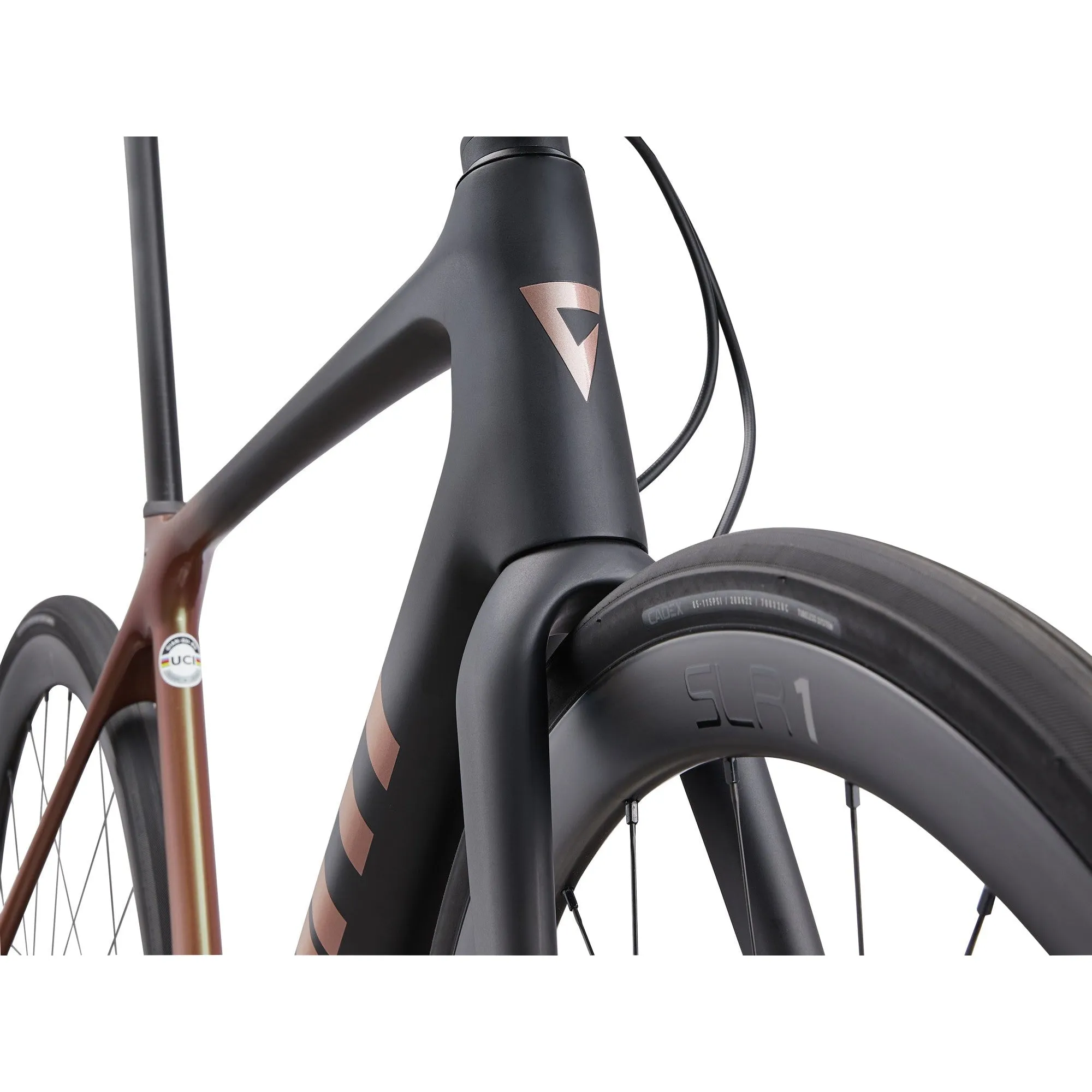

| Fork | Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc |
| Shock | N/A |

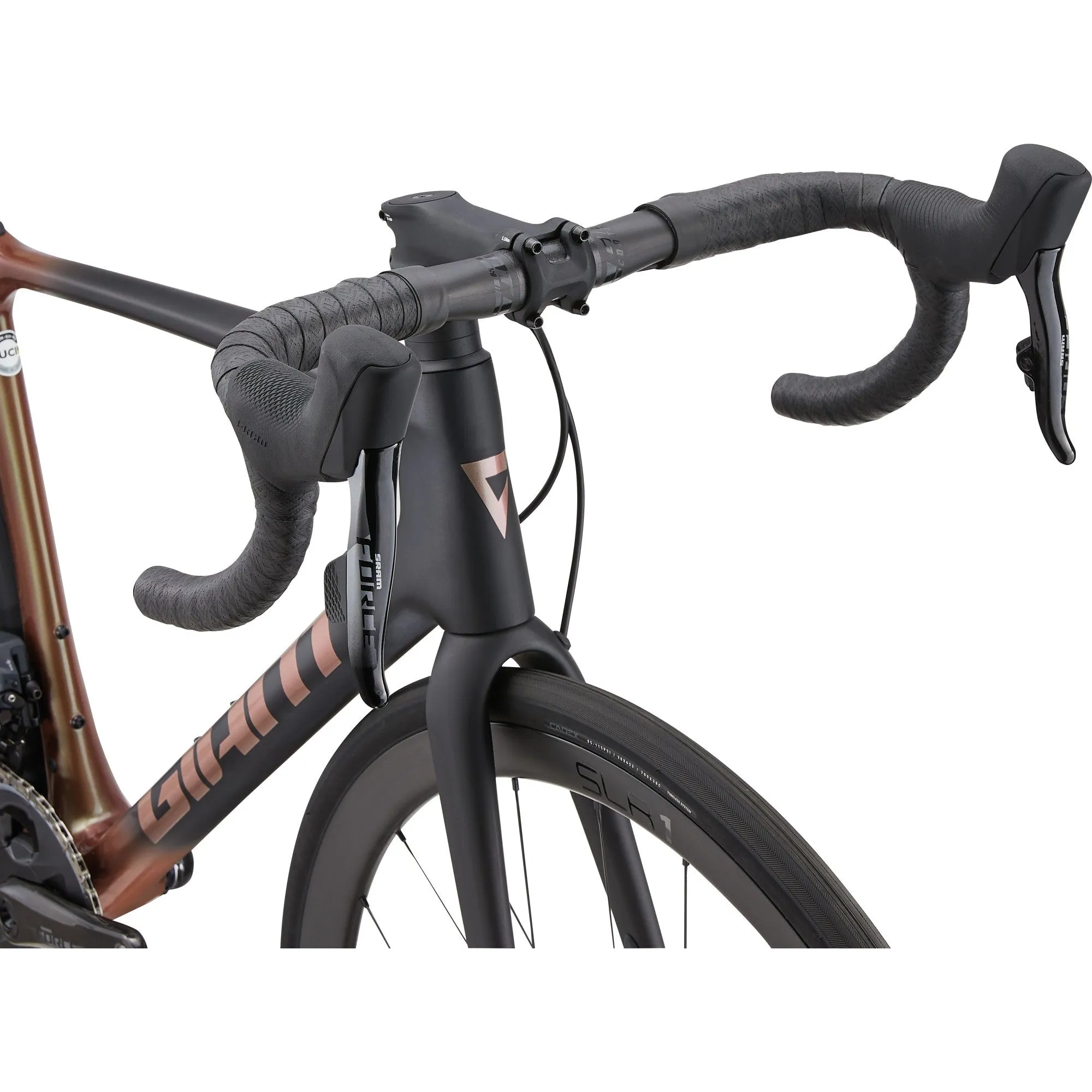

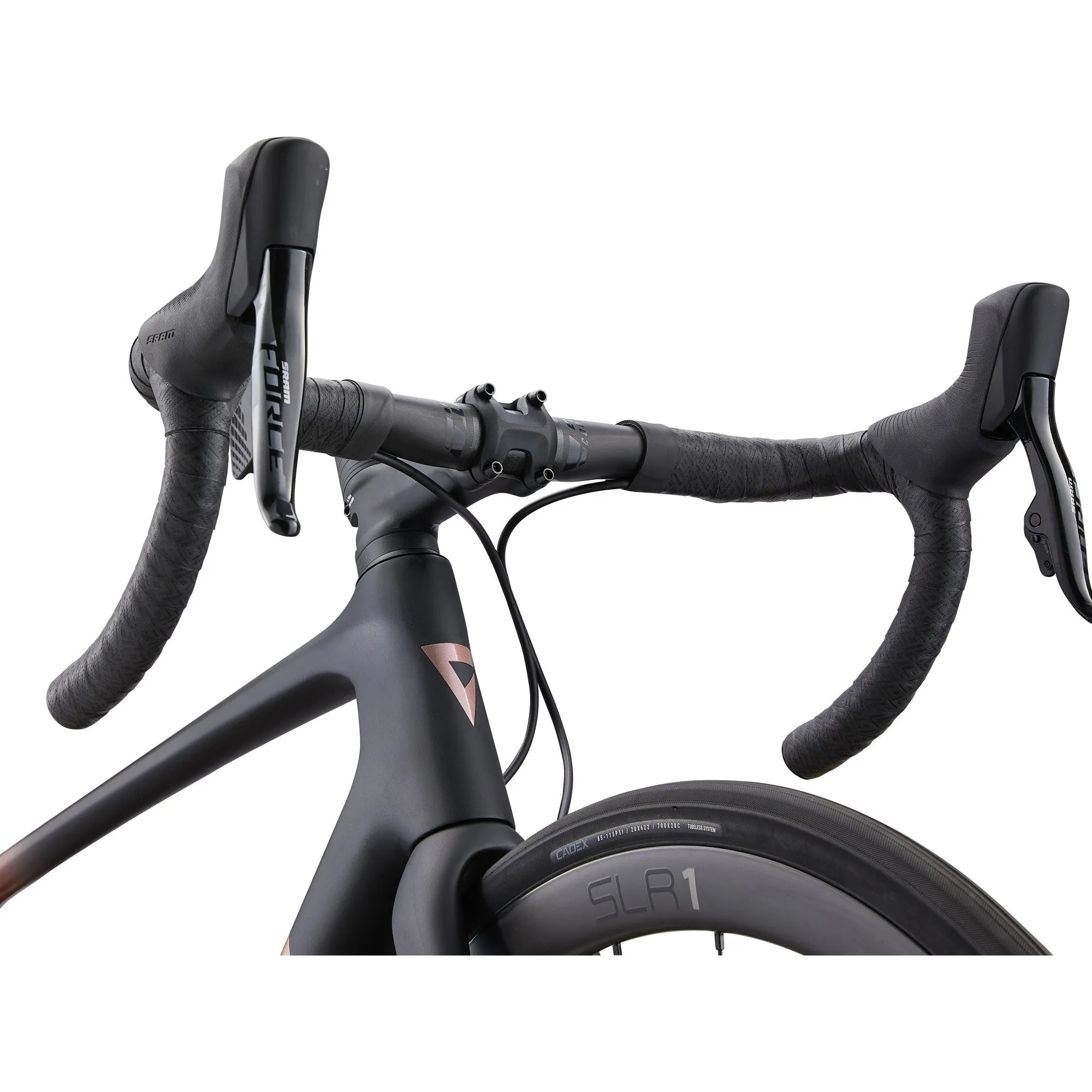

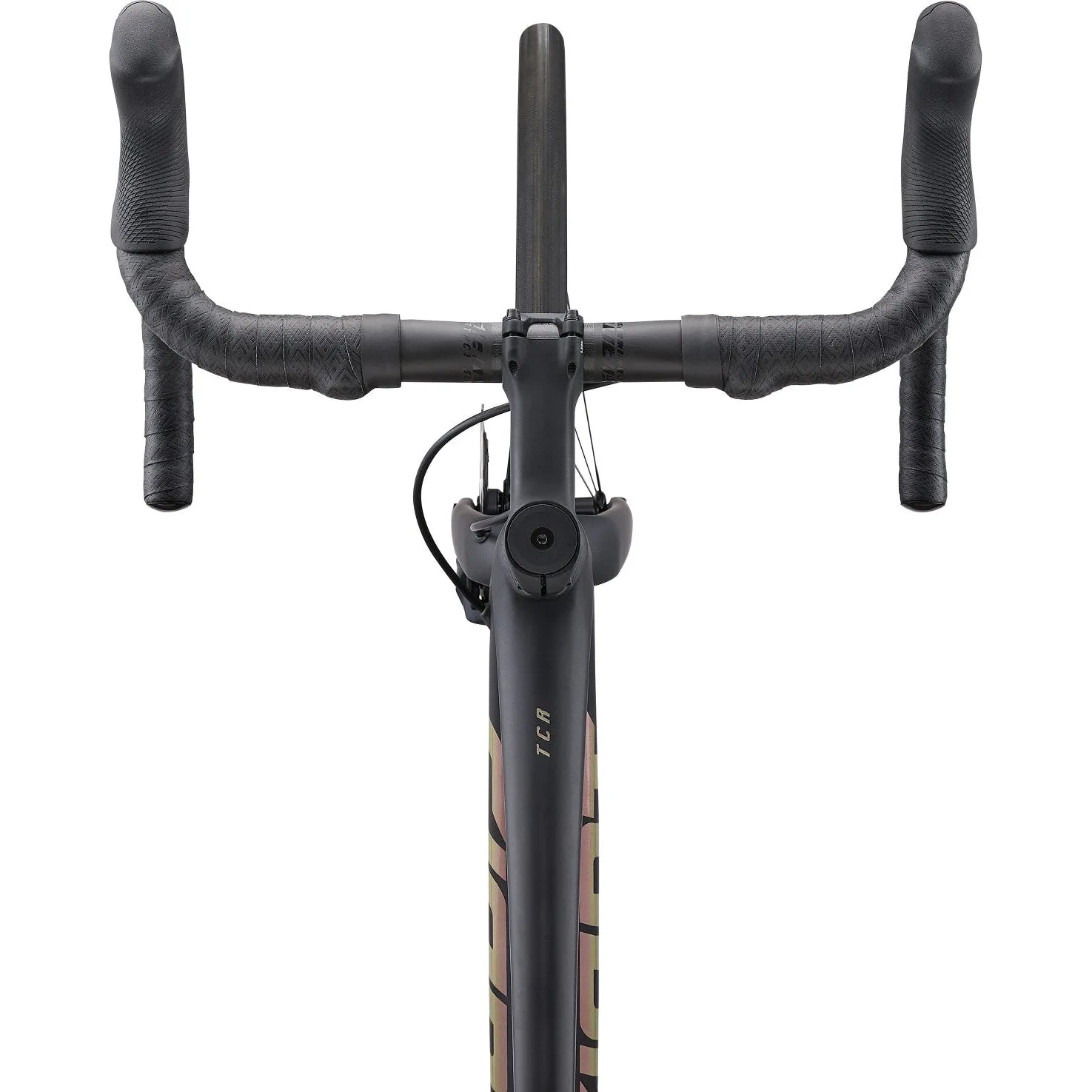

| Handlebar | Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Variant, composite, -5/ 15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | N/A |

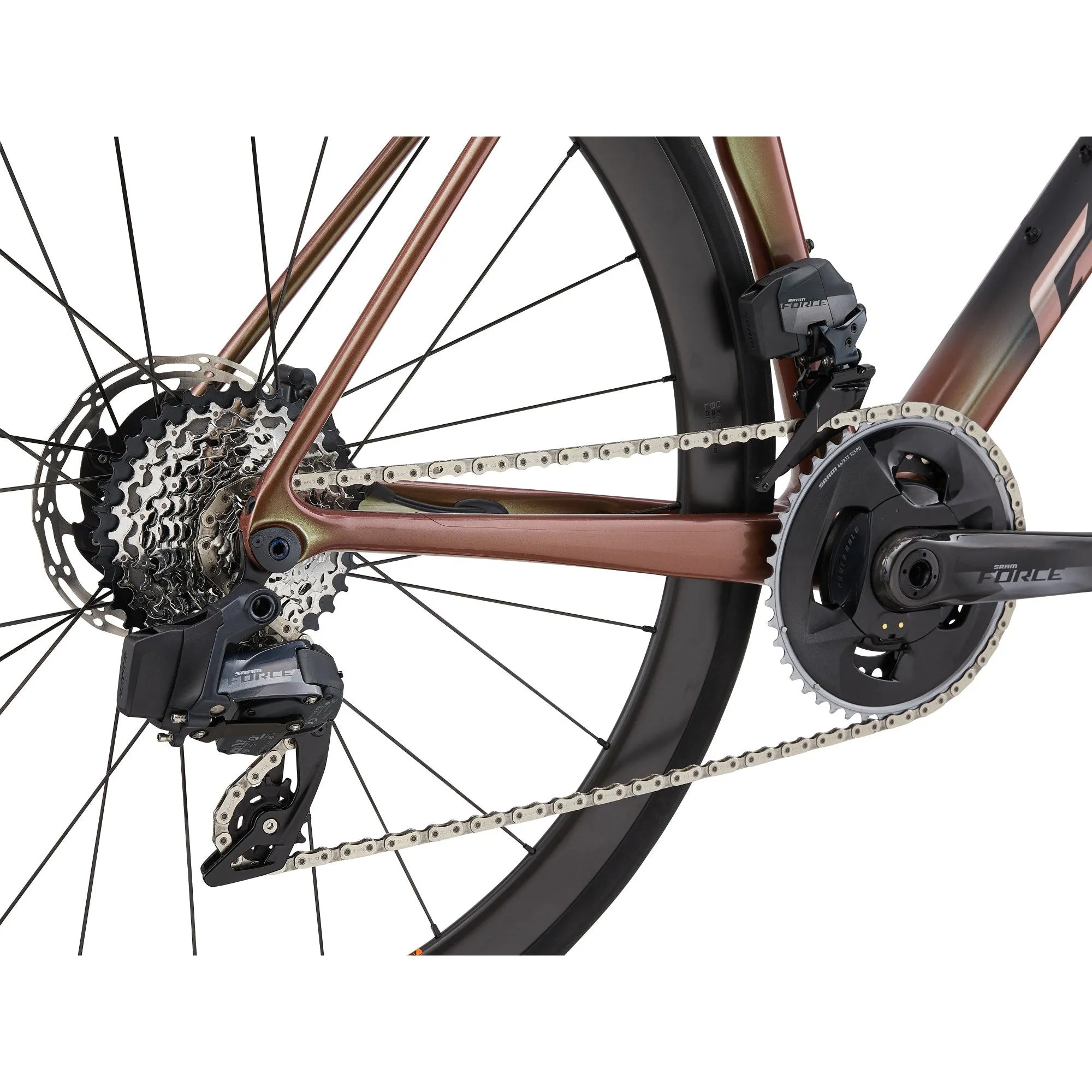

| Shifters | SRAM Force eTap AXS |
| Front Derailleur | SRAM Force eTap AXS |
| Rear Derailleur | SRAM Force eTap AXS |
| Brakes | SRAM Force eTap AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM Force eTap AXS hydraulic |
| Cassette | SRAM Force, 12-speed, 10x36 |
| Chain | SRAM Force D1 |
| Crankset | SRAM Force D1 DUB, 33/46 with Giant Power Halo power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tires | CADEX Classic, tubeless, 700x28c (32mm), folding |
| Extras | Computer mount, tubeless prepared, 32mm max tyre size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
